Making MCQ In Action Script 3.0 | ActionScript 3.0 2021

Hey everyone! Here’s a super brief tutorial. The Multiple Choice Question has been Made For Kids Education. Let's Learn Step By Step How to Make it.

Open Animate and create a new File 1280 x 720 and save the file name "Quiz" (ActionScript 3).

Now it's time to design your quiz interface. make a start button and set their instance name star_btn.

Create a rounded rectangle 1149 x 125 and set their instance name ques_mc. Add a Dynamic TextField with the Text Tool and name it "txt".

Create four rounded rectangle 382 x 108 and set their instance name Op1, Op2, Op3, Op4. Add a Dynamic TextField with the Text Tool and name it "Op_txt"

Add a Dynamic TextField with the Text Tool and name it "score_txt".

Add a Dynamic TextField with the Text Tool and name it "wrong_txt".

Add a Button with the Text "Replay" and name it "Replay_btn".

On the first frame Create a new layer and name it "Actions" and press F9.

Adding Click Event To Start the Quiz

stop();

start_btn.addEventListener(MouseEvent.CLICK,  PlayGame);

function PlayGame (MouseEvent)

{

	gotoAndStop(2);
}

On the second frame press F9 and adding questions

  //These are the classes we'll need to import for our class to work;

//import the Tween class
import fl.transitions.Tween;
//import the transitions
import fl.transitions.easing.*;
import flash.filters.*;


stop();

var tween1:Tween;
var tween2:Tween;
var tween3:Tween;
var tween4:Tween;
var tween5:Tween;
var Qnum = 0;
var score = 0;
var miss = 0;




var Questions:Object = [

	{
		Ques: "The Binary Coded Decimal (BCD) uses",
		Options: ["6 bits","8 bits","16 bits","32 bits"],
		Ans:	"6 bits"
	},


	{
		Ques: "Which of the following is billionth of a second?",
		Options: ["Microsecond","Nanosecond","Terabyte","Gigabyte"],
		Ans:	"Nanosecond"

	},


	{
		Ques: "The two kinds of main memory are",
		Options: ["CDs and DVDs","RAM and ROM","Primary and secondary","Direct and sequential"],
		Ans:	"RAM and ROM"
	},


	]




  //Second Frame Code

  //Add Variable for options

  var no1 = 0;

function GameStart()

{

	//Adding Tween in Questoins
	tween1 = new Tween(ques_mc, 'alpha', Regular.easeInOut, 0, 2, 4, true);

	tween1 = new Tween(ques_mc, 'y', Bounce.easeOut, -200.65, 200.85, 3, true);



	//Adding Tween in Options
	tween2 = new Tween(Op1, 'y', Bounce.easeOut, -100, Op1.y, 3, true);
	tween3 = new Tween(Op2, 'y', Bounce.easeOut, -100, Op2.y, 3, true);
	tween4 = new Tween(Op3, 'y', Bounce.easeOut, -100, Op3.y, 3, true);
	tween5 = new Tween(Op4, 'y', Bounce.easeOut, -100, Op4.y, 3, true);





	//Adding text fomr array object in Question And Options;

	ques_mc.txt.text = Questions[Qnum].Ques;

	Op1.Op_txt.text = Questions[Qnum].Options[no1];
	no1++
	Op2.Op_txt.text = Questions[Qnum].Options[no1];
	no1++;
	Op3.Op_txt.text = Questions[Qnum].Options[no1];
	no1++;
	Op4.Op_txt.text = Questions[Qnum].Options[no1];

	//reset no1 value
	no1 = 0;
}


    // Calling The Function

	GameStart();




Now Ctrl+Enter and test the movie (swf) question and option fetch done


      for (var i = 1; i <= 4; i++)
	{

		this["Op" + i].buttonMode = true;

		this["Op" + i].addEventListener(MouseEvent.CLICK, ClickFunction1);
	}



    function ClickFunction1 (e:MouseEvent):void
{


	//Store buttons name in variable

	var btn = e.currentTarget.name;


//if user click Option-1

	if(btn == "Op1")
	{
		//Cheking if current target is true.

		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play(); // We will make this movie clip in the next step.


	}


	else
	{
		trace("Try Again");
		try_mc.play(); // We will make this movie clip in the next step.
	}


	}




    //if user click Option-2

	else if(btn == "Op2")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}


    //if user click Option-3

	else if(btn == "Op3")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}


    //if user click Option-4

    else if(btn == "Op4")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}




}






Create a new layer and name it "good_and_try"

Make a Good Work Object as you want to design. when the user clicked on the right option. it will appear.

goto (goood work movie clip) and put stop(); command on first frame as you see in video. On the last frame add gotoAndStop(1); and call parent function Object(parent).NextFunction();



 // put on first frame of Good Work Mc
    Stop();


 // put on last frame of Good Work Mc
    gotoAndStop(1);

	Object(parent).NextFunction();



Do same in try again mc but on the last frame change Object(parent).NextFunction(); to Object(parent).WrongAnwer();

You can also add sound of good work and try again in movieclips as you can see i add sound both moiveclips

Create a good work function



     function NextFunction()
{
	score++;
	Qnum++;


	//check  display question = total question;

	if(Qnum >= Questions.length)
	{

		// if All Questions Completed. go to and stop on the third frame.

		gotoAndStop(3);
	}

	else
	{

    	//Calling Again Game Start Funciton

		GameStart();


	}


}


Create a try again function



     function WrongAnwer()
{

	// simple when user click on wrong answer

	miss++;

}




Create a restart game funciton and showing result




// Frame Third Code

stop();


Replay_btn.addEventListener(MouseEvent.CLICK, replay_funC);

function replay_funC(e:MouseEvent){


	gotoAndStop(1);

}

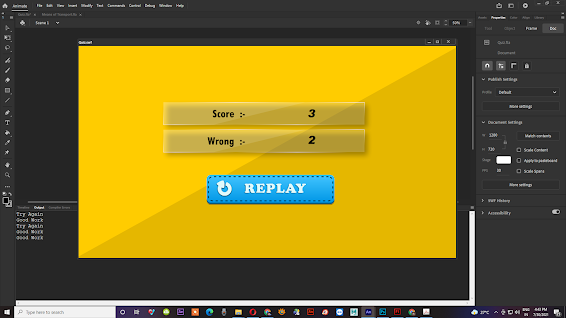

Adding Score and Missed


// Frame Third Code

//Showing score and miss on display


score_txt.text     =  String(score);
wrong_txt.text     =  String(miss);





Our quiz app is now complete.

Here is the code in full:




// Frame One Code

stop();

start_btn.addEventListener(MouseEvent.CLICK,  PlayGame);

function PlayGame (MouseEvent)

{

	gotoAndStop(2);
}





// Frame Second Code

//import the Tween class
import fl.transitions.Tween;
//import the transitions
import fl.transitions.easing.*;
import flash.filters.*;

stop();


var tween1:Tween;
var tween2:Tween;
var tween3:Tween;
var tween4:Tween;
var tween5:Tween;
var Qnum = 0;
var score = 0;
var miss = 0;



var Questions:Object = [

{
		Ques: "The Binary Coded Decimal (BCD) uses",
		Options: ["6 bits","8 bits","16 bits","32 bits"],
		Ans:	"6 bits"
},


{
		Ques: "Which of the following is billionth of a second?",
		Options: ["Microsecond","Nanosecond","Terabyte","Gigabyte"],
		Ans:	"Nanosecond"

},


{
		Ques: "The two kinds of main memory are",
		Options: ["CDs and DVDs","RAM and ROM","Primary and secondary","Direct and sequential"],
		Ans:	"RAM and ROM"
},

			]



var no1 = 0;

function GameStart()

{

	//Adding Tween in Questoins
	tween1 = new Tween(ques_mc, 'alpha', Regular.easeInOut, 0, 2, 4, true);

	tween1 = new Tween(ques_mc, 'y', Bounce.easeOut, -200.65, 200.85, 3, true);



	//Adding Tween in Options
	tween2 = new Tween(Op1, 'y', Bounce.easeOut, -100, Op1.y, 3, true);
	tween3 = new Tween(Op2, 'y', Bounce.easeOut, -100, Op2.y, 3, true);
	tween4 = new Tween(Op3, 'y', Bounce.easeOut, -100, Op3.y, 3, true);
	tween5 = new Tween(Op4, 'y', Bounce.easeOut, -100, Op4.y, 3, true);




	//Adding text fomr array object in Question And Options;

	ques_mc.txt.text = Questions[Qnum].Ques;

	Op1.Op_txt.text = Questions[Qnum].Options[no1];
	no1++
	Op2.Op_txt.text = Questions[Qnum].Options[no1];
	no1++;
	Op3.Op_txt.text = Questions[Qnum].Options[no1];
	no1++;
	Op4.Op_txt.text = Questions[Qnum].Options[no1];


	no1 = 0;
}


	GameStart();


      for (var i = 1; i <= 4; i++)
	{

		this["Op" + i].buttonMode = true;

		this["Op" + i].addEventListener(MouseEvent.CLICK, ClickFunction1);
	}



    function ClickFunction1 (e:MouseEvent):void
{


	//Store buttons name in variable

	var btn = e.currentTarget.name;


	//if user click Option-1

	if(btn == "Op1")
	{
		//Cheking if current target is true.

		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play(); // We will make this movie clip in the next step.


	}


	else
	{
		trace("Try Again");
		try_mc.play(); // We will make this movie clip in the next step.
	}


	}




    //if user click Option-2

	else if(btn == "Op2")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}


    //if user click Option-3

	else if(btn == "Op3")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}


    //if user click Option-4

    else if(btn == "Op4")
	{
		if (e.currentTarget.Op_txt.text == Questions[Qnum].Ans)
		{
		trace("Good Work");
		good_mc.play();
	}
	else
	{
		trace("Try Again");
		try_mc.play();
	}

	}





}





 function NextFunction()
{
	score++;
	Qnum++;

	if(Qnum >= Questions.length)
	{


		gotoAndStop(3);
	}

	else
	{
		GameStart();


	}


}



function WrongAnwer()
{
	miss++;

}












// Frame Third Code




stop();


Replay_btn.addEventListener(MouseEvent.CLICK, replay_funC);

function replay_funC(e:MouseEvent){


	gotoAndStop(1);

}

score_txt.text     =  String(score);
wrong_txt.text     =  String(miss);







.........Thank You.........
